KML-2XXXCC SERIES
COAXIAL Cross - Mark LASER
PROJECTOR
Feature：
● Japan's industrial-grade laser diode
● Industrial design, high stability
● AVR+APC Control Circuit
● Long life
SPECIFICATIONS：

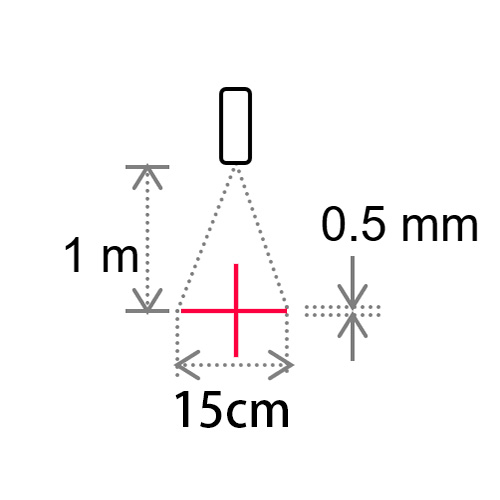

Model：KML-2501CC
Wavelength：630 ~ 650 nm RED
Output Power：< 1 mW
Project Distance：1 m
Line Length：15 cm
Line Width：0.5 mm Focus Fixed
Coaxial precision：θ < 0.05 degree
Input Voltage：5 ~ 8 VDC
Operating Current：< 70 mA
Operating Temp.：– 10 ~ +50 °C
Safety Class：Class Ⅱ
IP Class：IP 62
Lifetimes：> 20,000 hr
Dimensions：D 15 X L 65 (mm)
Weight：27 ± 5 g

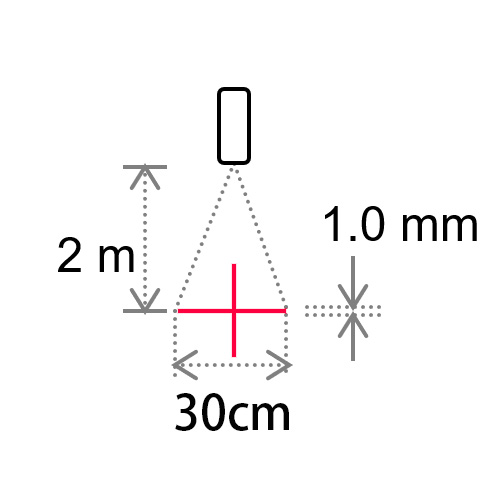

Model：KML-2502CC
Wavelength：630 ~ 650 nm RED
Output Power：< 2 mW
Project Distance：2 m
Line Length：30 cm
Line Width：1 mm Focus Fixed
Coaxial precision：θ < 0.05 degree
Input Voltage：5 ~ 8 VDC
Operating Current：< 70 mA
Operating Temp.：– 10 ~ +50 °C
Safety Class：Class Ⅲa
IP Class：IP 62
Lifetimes：> 20,000 hr
Dimensions：D 15 X L 65 (mm)
Weight：27 ± 5 g

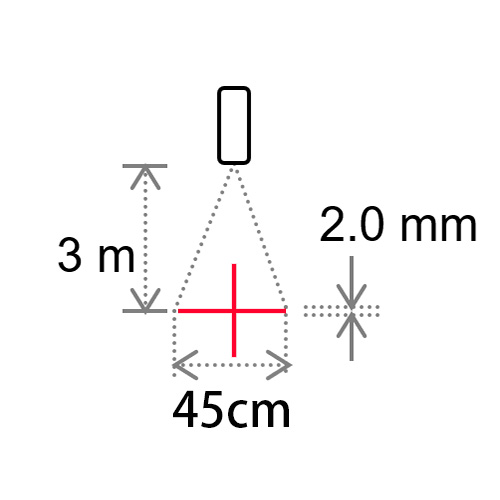

Model：KML-2503CC
Wavelength：630 ~ 650 nm RED
Output Power：< 3 mW
Project Distance：3 m
Line Length：45 cm
Line Width：2 mm Focus Fixed
Coaxial precision：θ < 0.05 degree
Input Voltage：5 ~ 8 VDC
Operating Current：< 70 mA
Operating Temp.：– 10 ~ +50 °C
Safety Class：Class Ⅲa
IP Class：IP 62
Lifetimes：> 20,000 hr
Dimensions：D 15 X L 65 (mm)
Weight：27 ± 5 g
Applications：
● Garment processing
● Metal working
● Paper processing
● Sewing processing
● Bicycle processing
● Print processing
Remarks：
1.The line length and line width of the
projection will vary depending on the
projection distance, angle, material,
color or illumination.
2.Special specifications can be requested.
Example：
 |
